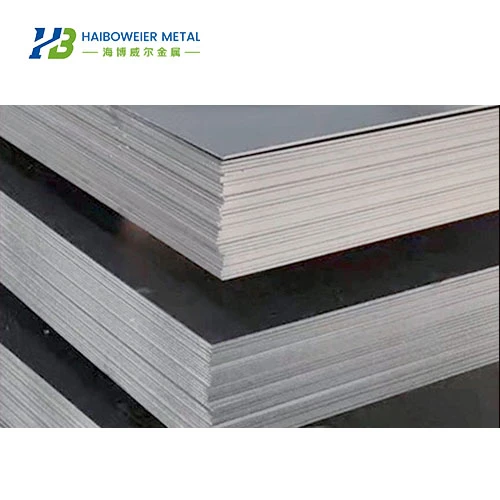

Gr5 Titanium Plate
Name: GR5 titanium plate
Material: Titanium Alloy Grade.5
Standard: ASTMF67 ; ASTM B265 ; AMS 4911
Size: Accept custom size
Surface: pickled surface / glossy surface / sandblasted surface
Manufacturing process: forging/rolling
Product Introduction
1. What is G5 titanium alloy plate?
Titanium and titanium alloy materials are an alloy metal composed of titanium and other metals . Titanium and titanium alloys have the characteristics of good corrosion resistance, high strength and high heat resistance. It is often used in the development of high-temperature titanium and titanium alloys for aircraft engines , and the development of structural titanium and titanium alloys for airframes . Since the 1980s , high-strength, corrosion-resistant titanium alloys have been further developed and are mainly used in the production of aerospace components, such as some components of aircraft engine compressors and structural components of missiles, rockets, and high-speed aircraft .
Gr . 5-UNS R56400. Titanium alloy (6 % aluminum 4 % vanadium),
Grade G 7 -pure titanium plus 0.12-0.25% palladium NR52400.
G.r 9- alloy titanium (3.0% aluminum 2.5% vanadium) UNS R56320.
Grade 12 alloy titanium (0.3 % molybdenum , 0.8 % nickel ) UNS R53400.
Grade23-alloyed titanium (6% aluminum, 4% barium, with ultra-low interstitial elements, Eli) NR56407.
2. GR 5 chemical composition
|
GR5 Chemical Analysis |
||||||||||||
|
chemical composition(%) |
||||||||||||
|
o |
N |
C |
h |
Fe |
AL |
V |
Ni |
Mo |
PD |
Others |
Residuals |
Ti |
|
0.20 Max |
0.05 Max |
0.08 Max |
0.015 Max |
0.40 Max |
5.5-6.75 |
3.5-4.5 |
|
|
|
|
0.4 Max |
Bal |
GR 5 mechanical properties
|
Nominal Thickness mm |
Tensile Strength MPA |
Yield Strength Offset by 0.2% MPA |
extend 50.8 mm or 4D mm % |
|
up to 0.20, excluding |
920 |
869 |
~~~ |
|
0.2 to 063, not included |
920 |
869 |
6 |
|
0.63 to 1.60, not included |
920 |
869 |
8 |
|
1.60 to 4.76, not included |
920 |
869 |
10 |
|
4.76 to 101.60, including |
893 |
827 |
10 |
Characteristics of GR5 titanium plate
|
high heat intensity |
It still has a high specific strength in the range of 150°C to 500°C , and can work for a long time at a temperature of 450° C to 500°C , and the working temperature of titanium alloys can reach 500°C |
|
high strength
|
The density of titanium alloy is generally around 4.51g/cm3 , which is only 60% of steel . Some high-strength titanium alloys exceed the strength of many alloy structural steels, so the specific strength (strength / density) of titanium alloys is much greater than other metal structural materials , can produce parts with high unit strength, good rigidity and light weight |
|
Good corrosion resistance |
Titanium alloys are particularly resistant to pitting corrosion, acid corrosion, and stress corrosion |
|
Good low temperature performance |
GR5 titanium alloy can still maintain its mechanical properties at low and ultra-low temperatures It can also maintain a certain degree of plasticity at -253°C |
|
High chemical activity |
The chemical activity of titanium is large, and it produces strong chemical reactions with O2 , CO , N2 , CO2 , H2 , ammonia, water vapor, etc. in the atmosphere |
|
non-toxic |
GR5 titanium rod titanium alloy is non-toxic and has good compatibility with human tissue and blood |
|
non-magnetic |
It is a non-magnetic metal and will not be magnetized in a relatively large magnetic field |
The main applications of GR5 titanium plate include aerospace, naval and marine engineering, conventional weapons, nuclear power and thermal power generation, metallurgy, construction, chemical and petrochemical, sports and daily necessities, etc.
