Titanium Composite Plate

Name: titanium composite plate
Titanium alloy core materials: GR5 , GR 2, etc.
Plate specifications: thickness 1-10 (mm)
Processing and synthesis: titanium and steel titanium and zinc titanium and copper titanium and nickel, etc.
Composite layer material: carbon fiber, glass fiber, etc.
tensile strength: ≥900MPa
Bending strength: ≥1000MPa
Applications: Containers, boilers, nuclear reactors, storage containers, etc.

Send Inquiry

Product Introduction

Titanium composite plate is a high-performance composite plate with titanium alloy as the core material and combined with special composite layers of other metals . It is not only light and strong, but also has excellent corrosion resistance and high temperature resistance.

Our titanium composite plate products include: titanium composite steel plate, titanium-zinc composite plate, titanium hot-melt zirconium plate, titanium-copper composite plate, titanium-aluminum composite plate, titanium-plastic composite plate, titanium-nickel composite plate, titanium composite rod, etc. , with a wide range of products It is used in aviation, aerospace, chemical equipment , petroleum, metallurgy, shipbuilding, pharmaceutical machinery, glass, electronics, heat treatment, steel, vacuum salt production, automobile manufacturing , electric power and many other high-tech industrial fields. It has become an indispensable and important material in various industries .

Titanium is mostly used as a material for various chemical reaction vessels and heat exchangers because titanium has excellent corrosion resistance. The disadvantage is the higher cost, especially when used as a structural member. An effective solution is to use titanium steel composite plate materials composed of titanium and ordinary steel, called titanium steel composite materials. It combines the corrosion resistance of titanium with the strength of ordinary steel plates and is relatively low-cost as a structural component. The equipment is simplified, and both the tube sheet and the head can be manufactured using titanium/steel composite plates. For example, titanium composite plates are used in the production of urea synthesis towers, vacuum salt evaporation chambers, polyester reactors and other devices. Compared with the use of pure titanium, the engineering cost can be significantly reduced by 30-40%.

Product materials, dimensions, specifications

category		Material	Dimensions ( mm )	Specification
Rare refractory metal composite panels	Ti/CS composite board	Titanium & Alloys/Carbon Steel & Forging	1-10/2-300	ASTM B898
	Titanium/stainless steel composite plate	Titanium alloy/various stainless steel	1-10/2-200	ASTM B898
	Zr/CS composite board	Zirconium alloy/carbon steel and forging	1~10/2~50	agreed
	Titanium/copper composite plate	Titanium alloy/copper	1-12/2-100	Q/XB1506
	Ta/CS composite wrench	Tantalum & Alloys/Carbon Steel & Forging	1~12/2~50	GB8547 or NB47002.3
	Silver/stainless steel composite plate	Silver/various SS	0.1-5/0.2-50	agreed
	Silver/copper composite board	Silver and Alloys/Copper	0.1-5/0.2-50	GB2073
	Stainless steel/carbon steel composite plate	Austenitic stainless steel, duplex stainless steel/vanadium carbon, forged	1~12/2~200	ASME SA264

titanium composite steel plate products:

1.
Light and strong: The core material of the composite panel is made of high-strength titanium alloy, which gives it excellent strength and rigidity while being relatively light in weight, which can reduce the structural load and improve the overall performance.

2.
Corrosion resistance: Titanium alloy has good corrosion resistance, and the addition of the composite layer further enhances its corrosion resistance and can be used for a long time in harsh environments.

3.
High temperature resistance: It has excellent high temperature resistance, can maintain stable performance in high temperature environments, and is not easy to deform, melt or oxidize.

4.
Excellent electrical conductivity: It has good electrical conductivity and is suitable for scenarios that require electrical conductivity, such as electronic equipment, aerospace and other fields.

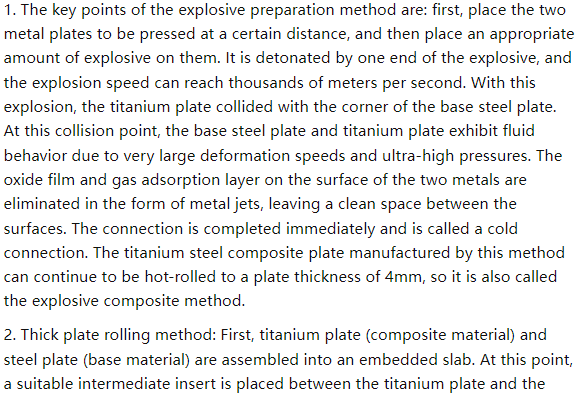

Manufacturing methods of titanium steel composite plates : explosive cladding method , thick plate rolling method , continuous hot rolling method .

product-577-395

product-1006-165

titanium composite plate products:

Is it weldable? Yes, regular welding processes can be performed.

Is the price relatively high? Compared with ordinary metal materials, the price of composite panels is slightly higher, but considering its lightness, strength and corrosion resistance, it is cost-effective.

What environments is it suitable for? Suitable for various harsh environments, such as high temperature, high pressure, corrosion, etc.
