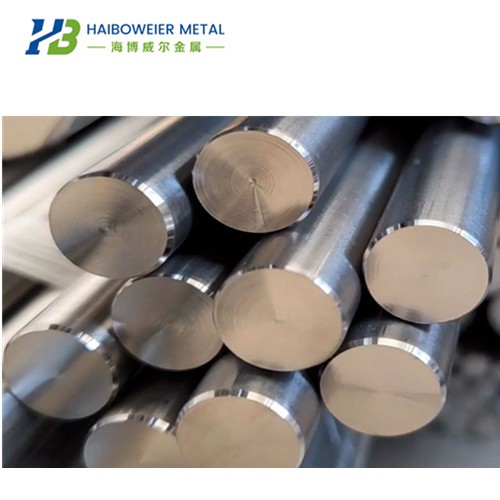

Ti-6al-4v Eli Titanium Rod Astm F136

Name: Ti-6al-4v Eli titanium rod Astm F136
Material: GR5Ti-6al-4V Eli
Implementation standards: ASTM F136/ASTM F67, ISO 5832-3
Shape: square, hollow, circle, hexagon, etc.
Size: 2.5mm～60mm×L
Surface treatment: sandblasted surface or glossy surface
Tolerance: h6-h7-h8-h9
Packaging: inner packaging + export wooden box

Send Inquiry

Product Introduction

Ti-6al-4v Eli titanium rod Astm F136 is one of the titanium rods produced by our company. Our medical titanium rods strictly comply with the ASTMF-136 titanium performance standards set by the American Society for Testing and Materials (ASTM). To ensure the quality and performance of medical grade titanium used in implantable medical devices, all titanium materials used in implantable medical devices undergo rigorous testing to ensure the safety and effectiveness of our Ti-6al-4v Eli titanium rods sex. We have developed high-quality titanium rods for medical devices, and also developed and produced G5 titanium alloy and other customizable titanium products of commercial pure titanium. If you need high-quality titanium products, our titanium and titanium alloy products of each grade are available You choose, Haibowell people welcome your consultation and customization!

MECHANICAL PROPERTIES

MECHANICAL PROPERTIES
Yield Strength(0.2% Offset)		UltimateTensile Strength		Elongation0.2%Offset	Reduction Of Aera
Min		Min		Min %	%
Ksi	MPa	Ksi	MPa
115	795	125	860	10	25
110	760	120	825	8	20

CHEMICAL COMPOSITION

Fe(Max)

C(Max)

N(Max)

H(Max)

O(Max)

Elements

Max.Each

Elements

Max.Total

0.4

0.08

0.05

0.012

0.13

5.50~6.5

3.5~4.5

Balance

0.1

0.4

Production parameters

F-136 titanium rod grades include:

GR5 (Ti-6Al-4V) and GR23 (Ti-6Al-4V ELI) – These are the most commonly used titanium alloys in medical implants due to their excellent biocompatibility and superior mechanical properties. Contains 6% aluminum, 4% vanadium and trace amounts of oxygen.

Ti-6Al-7Nb – The composition of this titanium alloy is slightly different from the Ti-6Al-4V ELI alloy, with 7% niobium added. This makes it suitable for orthopedic implants and provides excellent strength and fatigue resistance.

Ti-15Mo – This titanium alloy is primarily used in dental implants due to its excellent corrosion resistance and biocompatibility. Contains 15% molybdenum and trace amounts of other elements.

Ti-6Al-2Sn-4Zr-2Mo – This titanium alloy is commonly used to make spinal implants. Its composition is 6% aluminum, 2% tin, 4% zirconium, 2% molybdenum and trace amounts of other elements.

Ti-13Nb-13Zr – This titanium alloy is also used in dental implants and is composed of 13% niobium, 13% zirconium and trace amounts of other elements. It has excellent corrosion resistance and high biocompatibility.

Ti-6Al-2Nb-1Ta-0.8Mo - This titanium alloy is composed of 6% aluminum, 2% niobium, 1% tantalum, 0.8% molybdenum and trace amounts of other elements. It has excellent mechanical properties and high biocompatibility.

Features of biomedical titanium alloy Ti-6al-4v GR5 ELI rod:

Biocompatibility

It has minimal biological reaction with the human body, is non-toxic and non-magnetic. As a human implant, it has no toxic or side effects on the human body.

Mechanical properties

high strength, low elastic modulus, meeting mechanical requirements and similar to human bone modulus, which is beneficial to the growth and healing of human bones.

Corrosion resistance Titanium alloy is a biologically inert material and has certain corrosion resistance in the human physiological environment and will not pollute the human physiological environment.

Light weight

The density of titanium alloy is only 56% of stainless steel, which significantly reduces the load on the human body after implantation.

Characteristics of biomedical titanium:

Chemical composition: Ti-6Al-4V The main components of ELI G23 titanium alloy include more than 90% titanium (titanium), 6% aluminum (aluminum) and 4% vanadium (vanadium). In addition, the ELI version of titanium alloy contains additional Indirect ingredient content to ensure its suitability for medical applications.

Mechanical Properties: According to ASTM F136 standards, Ti-6Al-4V ELI titanium is required to have specific mechanical properties such as tensile strength, yield strength and ductility. These performance requirements may vary depending on the specific application.

Non-destructive testing: Titanium alloys for medical use usually require non-destructive testing to ensure their quality and reliability. This can include radiographic inspection, X-ray inspection, etc. to detect potential defects or cracks.

Biocompatibility: This titanium alloy is widely used in medical device manufacturing due to its excellent biocompatibility and ability to be used internally in humans without causing inconsistencies or top reactions.

Ti-6al-4v Eli titanium rod Astm F136 is widely used in the medical field

Orthopedic implants: Ti-6Al-4V ELI rods are commonly used to manufacture various orthopedic implants, such as artificial joints, bone plates, screws, vertebral body substitutes, etc. These portals must have good biocompatibility and sufficient mechanical strength to withstand loads within the human body and facilitate treatment.

Dental portals: Dental portals, such as dental implants and alveolar bone brackets, this titanium alloy is very important for biocompatibility within the oral cavity because it must interact harmlessly with oral tissues.

External Diagnostics: Components that can be used to manufacture a variety of external diagnostic equipment, such as components for blood analysis instruments, pathology equipment, and imaging equipment. Its mechanical properties and corrosion resistance make it ideal as an integral part of these equipment.

Surgical instruments: Ti-6Al-4V ELI titanium rods are also commonly used in surgical instruments, cutting tools, microsurgery tools and other medical equipment. These tools need to be highly resistant to corrosion and wear to ensure their reliability and long service life during surgery.

Ophthalmic instruments: Ophthalmic surgical instruments, such as intraocular lenses and intraocular injection equipment, can also be manufactured using Ti-6Al-4V ELI titanium. Titanium's lightweight nature and biocompatibility make it ideal for ophthalmic applications.
