Zirconium Foil Zirconium Strip
Name: Zirconium foil zirconium tape
Brand: R60702 R60703 UNS R60704 R60705, etc.
Material: industrial zirconium and zirconium alloy
Zirconium material standards : ASTM B550 ASTM B551 ASTM B550-07 GB/8769-88
Specifications: width 1200, length 3000
Thickness : 0.03～0.6 ( mm )
Process: hot rolling/cold rolling/pickling/cutting
Zirconium content: 95%
Product Introduction
zirconium foil zirconium strips are thin sheet materials made of zirconium, a metal with excellent corrosion resistance and high melting point.Our zirconium products comply with ASTM requirements and other international zirconium material requirements. Our specifications and sizes are diverse to meet your customized needs. We can develop special coatings and surface treatments for you, or provide customized dimensions and tolerances.Timely delivery and attentive service, you are welcome to inquire at any time and customize the drawings. If you have needs for titanium and titanium alloys, nickel and nickel alloys and other rare metal material products, you can also choose our products.

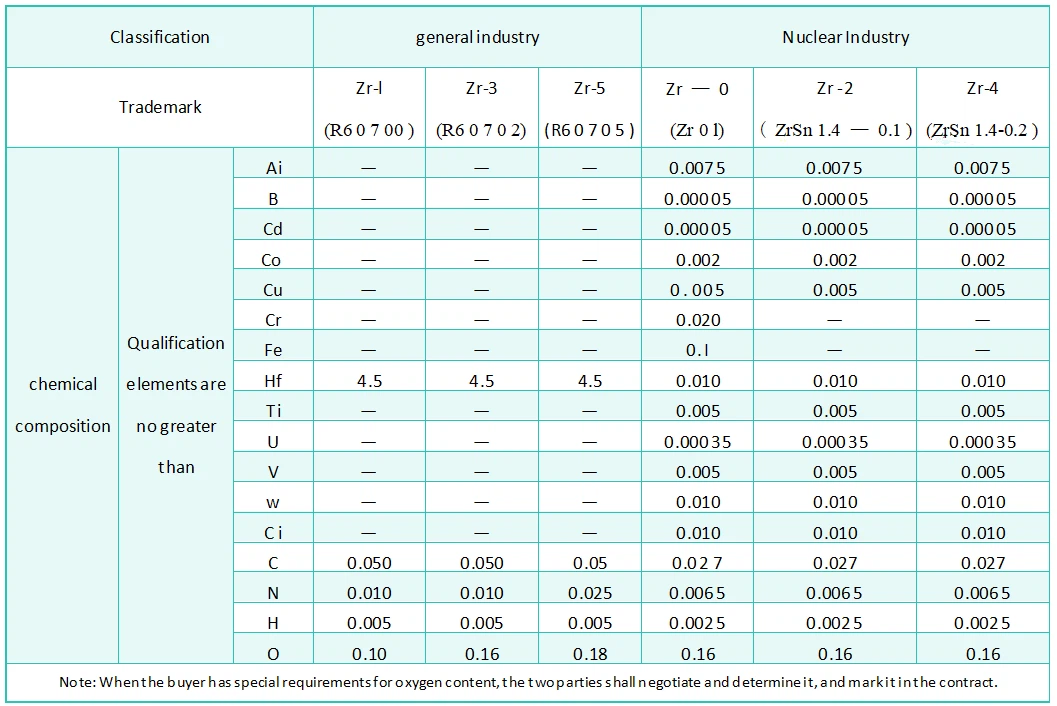

Chemical composition table of zirconium and zirconium alloys:
R60702 zirconium foil zirconium strip material properties:
Chemical properties: Zirconium has excellent corrosion resistance, mainly due to the formation of a stable oxide layer on its surface, which prevents further corrosion.
Physical properties: Zirconium has a high melting point (about 1830 degrees Celsius) and low thermal conductivity, making it a lightweight but high-strength metal.
Corrosion resistance: Zirconium has excellent corrosion resistance and is particularly suitable for acidic and alkaline environments.
High melting point: Zirconium's high melting point enables it to work stably in high-temperature environments, such as those used in the nuclear industry.
Lightweight and high strength: Zirconium is a lightweight but high-strength metal, suitable for applications requiring lightweight design.
Zirconium foil and R60702 zirconium ribbon product specifications reference:
|
Trademark |
Variety |
state |
Thickness × width × length mm |
|
UNSR60702 R60703 R60704 R60705 |
foil |
Cold rolling (Y) annealing (M) |
(0.01-0.02)×(30-100)×( ≦ 500) |
|
(0.03-0.09)×(50-300)×( ≦ 500) |
|||
|
Strip |
(0.10-0.30)×(50-300)×( ≦ 500) |
||
|
(0.40-0.90)×(50-500)×( ≦ 1000) |
|||
|
(1.0-2.0)×(50-500)×( ≦ 2000) |
UNSR60702 zirconium tape and zirconium foil products:
Our UNSR60702 zirconium foils and strips are available in thicknesses ranging from 0.02mm to 3mm and in widths from 10mm to 600mm. They can be used in annealed and cold working conditions. The surface finish quality of our high-purity zirconium ribbons meets the most stringent requirements and can be used in various fields such as aerospace, chemical engineering, medical equipment and electronics.
Our products have many advantages. First, they have high ductility and excellent formability, which makes them easy to shape. They also exhibit good tensile strength, toughness and creep resistance, which ensures that they maintain their properties over a wide temperature range. Additionally, our zirconium foils and R60702 zirconium ribbons have low neutron capture cross sections, making them ideal for use in nuclear reactors.
Applications of zirconium foil/zirconium tape:
Nuclear industry: Due to zirconium's high corrosion resistance and moderate neutron cross-section, zirconium foils and zirconium ribbons are often used in the fabrication of components in nuclear reactors, such as fuel cladding.
Chemical industry: They are widely used in the chemical industry to manufacture chemical reactors, storage tanks and other equipment because they can resist corrosion by strong acids and alkalis.
Electronic industry: Due to zirconium's high corrosion resistance, zirconium foil can be used in electronic devices such as capacitors, battery separators, etc.
Medical devices: It can be used in the manufacture of some medical devices, such as implantable medical devices, because zirconium has good biocompatibility.
Zirconium product map
