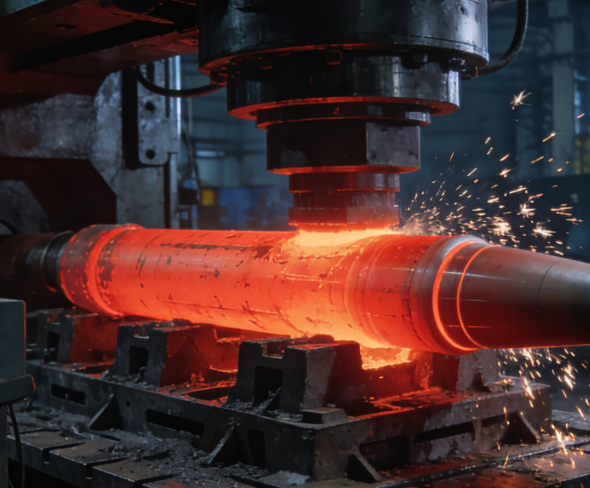

How is the missile casing forged and shaped?
In missile design, the forging of the missile casing is a core element determining its performance. Titanium alloys, due to their unique physicochemical properties, have become the preferred material for missile casings, and the forging process is key to unlocking their performance potential. From material selection to process control, every step embodies the military industry's relentless pursuit of performance and reliability.
Titanium Alloys: The "Natural Darling" of Missile Casings
Titanium alloys have only 60% the density of steel, yet possess a specific strength comparable to high-strength steel. This means that, for the same strength, titanium alloy casings can significantly reduce missile weight, increasing payload and flight range. Their wide temperature range stability (-253℃ to 600℃) allows them to withstand the high temperatures generated by air friction during high-speed flight and avoid embrittlement in extremely cold environments. Furthermore, the dense oxide film formed on the surface of titanium alloys gives them excellent corrosion resistance, maintaining structural integrity even during long-term service in harsh environments such as humidity and salt spray. Taking TC4 (Ti-6Al-4V) titanium alloy as an example, this material, widely used in missile engine casings, maintains a tensile strength of 618 MPa even at 400℃, and its fatigue strength reaches 70%-80% of its tensile strength, far exceeding traditional metal materials. This "combination of rigidity and flexibility" makes titanium alloys an ideal choice for missile casings, from warheads to engine compartments.
Forging Process: The "Golden Key" to Unlocking Titanium Alloy Performance
Forging titanium alloys is not simply plastic deformation, but a comprehensive technology involving materials science, thermodynamics, and precision control. Its core objective is to optimize the grain structure of the material by controlling the deformation temperature, degree of deformation, and deformation speed, thereby improving its mechanical properties.
Temperature control is the soul of the forging process. Titanium alloys are extremely sensitive to temperature, and their forging temperature window is typically 40-50℃ below the β phase transformation temperature. If the temperature is too high, the β grains will grow rapidly, forming coarse Widmanstätten structures, leading to a decrease in material plasticity; if the temperature is too low, the deformation resistance increases, easily causing cracking. The advent of isothermal forging technology has provided a revolutionary solution for titanium alloy forging. By simultaneously heating the die and billet to the target temperature and deforming them at extremely low strain rates under inert gas protection, performance degradation caused by temperature drop can be effectively avoided. For example, in the manufacturing of integral bladed disks for missile engines, isothermal forging technology can achieve precision forming with wall thicknesses of only 1.52-1.87 mm, while ensuring the material is in a superplastic state, significantly reducing the risk of cracking.
The degree of deformation is another key factor affecting the performance of titanium alloy forgings. When the degree of deformation is less than 30%, the casting structure is difficult to break down, resulting in coarse grains; when the degree of deformation exceeds 60%, the grains are significantly refined, forming a mixed structure of equiaxed α-phase and β-transformation microstructures. This structure combines high strength with good toughness. For example, in the forging of TC4 titanium alloy, by controlling the degree of deformation between 75% and 80%, the anisotropy in its microstructure can be minimized, thereby improving the material's fatigue performance. Controlling the deformation rate is equally important. Titanium alloys have poor thermal conductivity, and high-speed deformation can easily lead to excessive local temperature rise, causing performance degradation. Therefore, the deformation rate must be strictly controlled during forging to prevent the temperature rise from exceeding the β phase transformation temperature. For example, in multi-directional die forging, alternating loading in the vertical and horizontal directions can reduce the energy consumption of a single deformation and minimize the impact of temperature rise on material properties.
Practical Case: From Laboratory to Battlefield
Taking the manufacturing of a missile engine casing as an example, the near-isothermal die forging process using TC4 titanium alloy was employed. By precisely controlling the die temperature (930℃), deformation degree (70%), and strain rate (5×10⁻⁴s⁻¹), the casing was successfully and precisely formed. After heat treatment, the forging achieved a tensile strength of 980MPa and an elongation of 12%, far exceeding design requirements. More importantly, its fatigue life was increased by 30% compared to traditional processes, significantly enhancing the missile's reliability. This case fully demonstrates that every optimization step in the titanium alloy forging process can directly translate into a substantial improvement in missile performance.
The Technological Moat of Military Enterprises
For military enterprises, mastering the core technology of titanium alloy forging is not only a strategic choice to adapt to the trend of national defense modernization, but also a crucial step in seizing the commanding heights of high-end manufacturing. Taking Baoji Juwei Titanium Industry as an example, by introducing internationally advanced isothermal forging equipment and processes, it has successfully achieved mass production of TC4 titanium alloy forgings. Its products are widely used in missiles, spacecraft, and aero-engines. Its forgings not only dominate the domestic market but are also exported to high-end markets in Europe and America, making it a benchmark enterprise in the global titanium alloy forging field. This accumulation of technological strength stems not only from the extreme control of process details but also from a profound understanding of material properties. For example, by adjusting the cooling rate during forging, the ratio of α-phase to β-phase in the titanium alloy can be controlled, thereby achieving a precise balance between strength and toughness; by optimizing mold design, residual stress inside the forging can be reduced, improving its fatigue resistance.
Future Outlook: The "Galactic Ocean" of Titanium Alloy Forging
With the development of cutting-edge equipment such as hypersonic weapons and reusable spacecraft, the performance requirements for titanium alloy forgings are becoming increasingly stringent. In the future, titanium alloy forging technology will develop towards ultra-precision forming, customized material properties, and green manufacturing. Ultra-precision forming technology will achieve thinner wall thickness and more complex structures in forgings through multi-directional loading mold design and digital temperature control systems; customized material properties will allow for the on-demand customization of titanium alloy strength, toughness, and fatigue performance by adjusting forging process parameters; and green manufacturing will develop low-energy-consumption and low-emission forging processes, promoting the sustainable development of titanium alloy forging. These trends will not only drive further breakthroughs in titanium alloy forging technology but also provide new possibilities for leaps in missile performance.
Titanium alloy forging technology is subtly reshaping the performance boundaries of modern missiles. Its lightweight, high-strength, and corrosion-resistant properties not only enhance the penetration and survivability of missiles but also lay the material foundation for the development of future cutting-edge equipment such as hypersonic weapons and reusable spacecraft. For military enterprises, investing in titanium alloy forging technology is not only a strategic choice to keep pace with the trend of national defense modernization, but also a crucial step in seizing the commanding heights of high-end manufacturing. In this technological race, whoever masters the core processes of titanium alloy forging will gain an advantage in the future field of military technology, building a solid "titanium shield" for national security and development.
