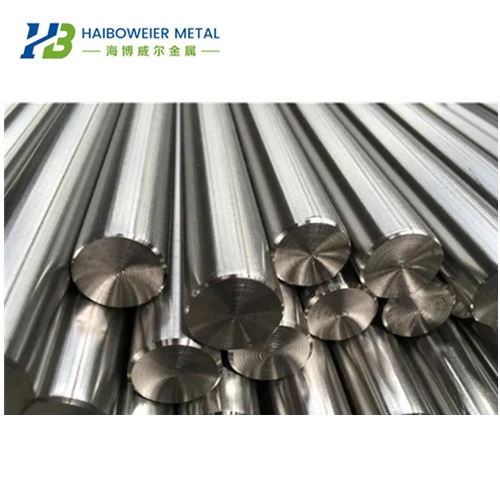

Pure Titanium Rod Grade1

Name: Pure titanium rod Grade1
Material: Commercially pure titanium grade 1
Implementation standard: ASTM B348 American standard
Minimum order quantity: 1kg
Spot delivery: dispatched within 3 days
Specifications: Cut according to customer order requirements
Packaging: plastic wrapped wooden box

Send Inquiry

Product Introduction

our products:

Haibowell Titanium Materials Co., Ltd. is located in Baoji, the world-famous Titanium Valley of China. It is a company specializing in the production of titanium tubes, titanium strips, titanium coils, titanium alloy plates, titanium forgings, titanium flanges, titanium shafts, titanium wires and titanium fasteners, etc., titanium A high-tech enterprise integrating alloy R&D, production and sales. Pure titanium rod Grade1 is one of the products we produce. Our titanium rods are divided into: titanium and titanium alloy bare rods, rough rods, round rods, hexagonal rods, titanium special-shaped rods, hollow rods, titanium square rods, titanium shafts, titanium Stirring shaft, titanium screw rod, etc.

Chemical composition table of grade 1 titanium:

GR-1 Chemical Composition List (%)-Density: 4. 51g/cm3
haibowellti
Main ingredients	Impurities are no more than ≤
titanium	iron	carbon	nitrogen	hydrogen	oxygen	other elements
						single	sum
margin	0.2	0.08	0.03	0.015	0.18	0.1	0.4

Trademark	Tensile strength, MPa ( min)	Yield strength, MPa ( min)	Elongation, % (minimum value)	Area reduction rate, % ( min)
Gr1	240	170	twenty four	30
GR2	345	275	20	30

Our products are mainly used in

①: high temperature resistant equipment

②: mechanical equipment

③: chemical equipment

④: pipeline accessories

⑤: petroleum equipment

⑥: military manufacturing and other fields.

About the product brief description:

1. Chemical composition: The chemical composition of pure titanium rod Grade1 titanium alloy is very simple, mainly composed of pure titanium, of which titanium content accounts for more than 99% of the total weight, and also contains trace amounts of iron, carbon, nitrogen, hydrogen, oxygen, etc. element.

2. Physical properties: This titanium alloy has excellent physical properties, such as low density (4.5g/cm³), low thermal expansion coefficient, light weight, and strong corrosion resistance.

3. Mechanical properties: The mechanical properties of Gr-1 titanium alloy are relatively weak, and its tensile strength is only about 280MPa. However, it has good plasticity and processability, and is easy to cold and hot forming.

4. Hot processing: This titanium alloy can improve its mechanical properties through heat treatment. Methods such as hot rolling, hot extrusion, hot processing, and forging can increase its hardness and strength and improve its use effect.

Pure titanium rod Grade1 available

Application field 1 : Gr-1 titanium alloy is widely used in aviation, aerospace, shipbuilding, marine engineering, chemical equipment, medical equipment, sports equipment and other fields, mainly because of its good corrosion resistance, high strength and lightweight. Features.

Application 2 : Producing various types of rivets and gasket materials. The domestic fastener industry mainly uses domestic materials Grade 1~2 . In the foreign aerospace field, pure titanium rivets have been replaced by new titanium-niobium rivets, which have higher strength and good deformability. Pure titanium can replace carbon steel, alloy steel and stainless steel in national standard products to produce navigation aids and national military standard products with higher requirements. It is recommended to use various rivets and washers that require higher corrosion resistance, oxidation resistance, or weight reduction.

Brief analysis of industrial pure titanium

Industrial pure titanium refers to several types of non-alloy titanium with different impurities such as Fe, C, O, N, etc. This type of titanium is called CPTi in the United States, that is, commercially pure titanium (Commercially Pure Ti). Domestic industrial pure titanium mainly has grades such as GR.1GR.2GR.3GR.4 , and American commercial pure titanium mainly has Grade 1~4 specified by ASTM relevant standards. Pure titanium cannot be strengthened by heat treatment. It has excellent formability and is easy to weld and braze. Mainly used to manufacture various non-load-bearing joint components, with long-term working temperature up to 300°C. Semi-finished products include plates, wires, pipes, forgings and castings, etc.

Grade 1 titanium is the first of four grades of industrially pure titanium. It is the softest and most malleable of these grades. It offers maximum formability, excellent corrosion resistance and high impact toughness , making it the material of choice for any application requiring ease of formability .

3 product features

Product Features 1. Healthy and environmentally friendly metal. Titanium does not contain harmful heavy metals, is non-toxic and is very compatible with human tissues and blood. Therefore, it is used by the medical community to make a variety of human organs and body parts implanted in the human body. Titanium is a non-magnetic metal and will not be magnetized in a large magnetic field.

Product Features 2. Harder than steel. Titanium's high tensile strength/yield strength means that the titanium material is not easily deformed by pressure or tension after forming. The strength of titanium is higher than other metal materials of the same volume. Due to the ratio between the yield limit of titanium and the elastic model The larger the value, the greater the resilience when titanium is formed.

Product Features 3. Good heat exchange performance. Although the thermal conductivity of titanium is lower than that of carbon steel

and copper, due to the excellent corrosion resistance of titanium, the wall thickness of titanium products can be greatly reduced, and the heat exchange method between the surface and steam is dropwise condensation, which reduces the thermal resistance. Titanium The absence of scaling on the surface can reduce thermal resistance and significantly improve the heat transfer performance of titanium .
