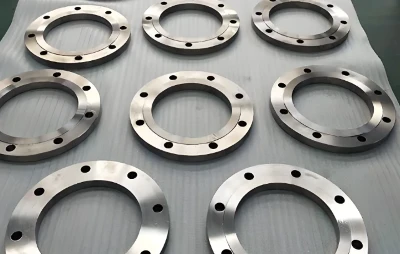

Performance characteristics of titanium flange
In complex industrial pipeline systems, each connection point plays an important role. They not only ensure the safe and efficient transmission of fluids, but also maintain stability and reliability in harsh working environments for a long time. Among numerous connecting components, titanium flanges have become an irreplaceable choice in the industrial field due to their unique material and excellent performance. So, what exactly is a titanium flange? How does it demonstrate its value in industry? Let's learn about the key role of titanium flanges in industrial applications together.
1. Definition and Structure
The substrate of a titanium flange is titanium or titanium alloy, with holes on it that can be tightly connected to two flanges through fasteners such as bolts and nuts. A gasket is usually placed between the flanges to ensure sealing. The design and structure of titanium flanges usually follow international standards such as ANSI, DIN, BS, and GB to ensure their interchangeability and universality.
2. Performance characteristics
1) Corrosion resistance: Titanium flanges perform well in various corrosive media, including seawater, saltwater, acids, alkalis, etc., and are therefore widely used in fields such as chemical engineering and marine engineering.
2) High strength: Despite its low density, titanium still has high mechanical strength and can withstand significant pressure and mechanical loads.
3) Lightweight: The density of titanium is about 60% that of steel, so the weight of titanium flanges is relatively light, which helps to reduce the weight of the entire pipeline system.
4) Good welding performance: Titanium flanges can be connected through various welding methods, such as TIG welding, and the welded joints have good strength and sealing.
5) Biocompatibility: Titanium flanges are also used in medical devices and implants due to their excellent biocompatibility.
3. Application Fields
Titanium flanges are widely used in multiple fields due to their unique performance:
1) In the field of chemical engineering, it is used to connect various chemical equipment and pipelines, ensuring the sealing of the medium and the safety of transmission.
2) Marine engineering: used to connect equipment and pipelines on offshore platforms, withstand harsh environments such as seawater corrosion and wave impact.
3) Aerospace: Used to connect pipeline systems on aircraft and rockets, ensuring stability and safety during high-speed flight and extreme temperatures.
4) Medical equipment: used to connect the pipeline system between medical equipment and implants, ensuring the safety and comfort of patients.
4. Selection and Precautions
When choosing titanium flanges, the following factors need to be considered:
1) Work pressure and temperature: Select the appropriate titanium flange model and specification based on the working pressure and temperature of the pipeline system.
2) Corrosivity of working medium: Select appropriate titanium or titanium alloy materials based on the corrosiveness of the medium.
3) The size and design of the pipeline system: Ensure that the size and design of the titanium flange match the pipeline system to ensure the reliability and sealing of the connection.
4) Convenience of installation and maintenance: Consider whether the installation and maintenance of titanium flanges are convenient, and whether special tools or equipment are required.
As a high-performance connecting component, titanium flanges play a crucial role in many industrial fields due to their excellent corrosion resistance, high strength, lightweight, and good biocompatibility. Whether it is petrochemicals, aerospace, medical equipment, or marine engineering, titanium flanges have their unique advantages to ensure the safety and efficiency of fluid transmission, and promote the sustainable development of related industries.
