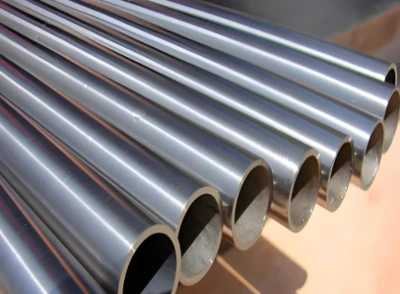

Treatment Methods for Titanium Tube Surface Oxidation
Titanium tubes are widely used in aerospace, medical devices, and chemical industries due to their excellent biocompatibility, corrosion resistance, and high strength. However, the presence of an oxide layer on the surface of titanium tubes can significantly affect their processing performance and final application results: the oxide layer can reduce surface finish, increase roughness, and even pose a risk of hydrogen embrittlement. In the biomedical field, the oxide layer can also hinder the direct bonding of bone cells to the titanium matrix, affecting implant stability. To meet the needs of different scenarios, titanium tube surface oxidation treatment requires a comprehensive approach that balances basic purification with functional enhancement.
Basic Oxide Layer Purification: Physical and Chemical Cooperative Treatment
Oxide layer purification is a core step in titanium tube surface treatment. The appropriate method must be selected based on the oxide layer thickness, material composition, and subsequent process requirements.
Mechanical Pretreatment: Precise Control of Sandblasting and Polishing
For oxide layers thicker than 50μm, sandblasting with white corundum grit (200-400 mesh) is required, using a pressure of 0.4-0.6MPa for 15-30 seconds. This process can quickly remove surface sand and oxide layers, but requires strict control of pressure parameters. A case study of titanium tube processing for aviation applications shows that pressures exceeding 0.6 MPa can trigger spark reactions, leading to microcracks on the titanium tube surface. For complex structural parts, ultrasonic polishing can be combined with high-frequency vibration (20-40 kHz) to remove oxide layers in dead corners while avoiding mechanical stress concentration.
Chemical Cleaning: Optimizing the Pickling System
For thin oxide films (<20 μm), a mixed HF-HNO₃ acid system is recommended: 3%-5% hydrofluoric acid and 15%-30% nitric acid in a 1:3 volume ratio, treated at 25-35°C for 1-3 minutes. This system achieves efficient cleaning through a dual reaction mechanism: hydrofluoric acid dissolves the TiO₂ in the oxide film, while nitric acid oxidizes the titanium substrate surface, forming a passivation layer to prevent excessive corrosion. Experimental data from a medical device company showed that the surface roughness Ra of titanium tubes treated using this process can be reduced from 3.2μm to 0.8μm, while the increase in hydrogen content is kept within 0.002%, fully meeting the ISO 13779-2 standard.
Vacuum Heat Treatment: Eliminating Deep Oxidation Defects
For thick oxide layers (>100μm) formed during heat processing, a two-step vacuum heat treatment is required: first, a 2-hour hold at 850°C allows oxygen in the oxide film to diffuse into the titanium substrate; then, a dehydrogenation treatment is performed in a 10⁻³Pa vacuum environment to reduce the hydrogen content to below 0.001%. A research team from Xi'an University of Technology found that this process can reduce the thickness of the oxide film on titanium tube surfaces by 80%, while increasing the substrate hardness by 15%, significantly improving subsequent processing performance.
Functionalized Oxide Layer Construction: Anodic Oxidation and Micro-arc Oxidation Technologies
Building a functionalized oxide layer through electrochemical or plasma techniques, based on basic purification, can impart wear resistance, antibacterial properties, or bioactivity to titanium tubes.
Anodizing: Color Control and Corrosion Resistance Enhancement
Using a titanium tube as the anode and stainless steel as the cathode, anodizing is performed at a voltage of 10-15V in an electrolyte containing phosphate (50-100g/L) and fluoride (10-20g/L). By adjusting the voltage (5-110V) and duration (5-30 minutes), a colored oxide film with a thickness of 50-500nm is formed: copper at 5V, blue at 30V, and green at 110V. This film not only provides decorative effects but also significantly improves corrosion resistance. Neutral salt spray tests show that anodized titanium tubes show no corrosion spots after 720 hours, while untreated samples show rust after only 48 hours.
Micro-arc Oxidation: Superior Protection with a Ceramic Film
Based on anodizing, the voltage is increased to 200-500V, generating micro-arc discharges on the titanium tube surface, in-situ forming a ceramic film up to 300μm thick. This film, composed of a mixture of anatase and rutile TiO₂, boasts a hardness of HV1200 and wear resistance eight times greater than that of the substrate. A research team at Seoul National University in South Korea developed a micro-arc oxidation film in a calcium-phosphorus electrolyte. After hydrothermal treatment, the film transforms into a bioactive layer of hydroxyapatite (HA). After immersion in simulated body fluid (SBF) for seven days, the HA deposition reached 2.3 mg/cm², significantly promoting bone cell adhesion and proliferation.
Composite Oxidation Technology: Innovative Performance
Combining the advantages of anodic oxidation and micro-arc oxidation, a step-by-step process was developed: first, anodic oxidation at a low voltage (50V) forms a dense inner layer; then, micro-arc oxidation at a high voltage (400V) creates a porous outer layer. This composite film combines high hardness (HV1000) with a high specific surface area (25 m²/g). When used as a lithium battery anode material, it can improve charge and discharge efficiency by 12% and extend cycle life by 30%.
Oxidation Treatment Quality Control: From Process Parameters to Testing Standards
To ensure the effectiveness of oxidation treatment, a comprehensive quality control system must be established, covering solution preparation, process execution, and finished product testing.
Standardized Solution Preparation
The pickling solution must be prepared fresh, diluted with deionized water, and a corrosion inhibitor (such as thiourea) must be added at 0.5g/L to minimize substrate loss. The pH of the anodizing electrolyte must be tested daily (maintained between 6.0 and 8.0), and one-third of the volume must be replaced weekly to maintain a stable ion concentration. The micro-arc oxidation electrolyte must be equipped with a circulating cooling system to maintain a temperature between 25°C and 35°C to prevent localized overheating that could cause film cracking.
Digital Monitoring of Process Parameters
Introducing IoT technology, sensors are installed in the oxidation treatment equipment to monitor voltage (accuracy ±0.1V), current (accuracy ±0.5A), and temperature (accuracy ±0.5°C) in real time. After implementing this system, an aviation parts manufacturer reduced its product defect rate from 3.2% to 0.5%, saving over 2 million yuan in annual rework costs.
Multi-dimensional Evaluation of Finished Product Inspection
A metallographic microscope (500x magnification) is used to observe the cross-sectional morphology of the film layer to ensure the absence of defects such as cracks and holes. X-ray photoelectron spectroscopy (XPS) is used to analyze the film composition and verify that the calcium-phosphorus atomic ratio meets the bioactivity requirement (Ca/P = 1.67). A scratch tester (load 10N) is used to test the membrane-substrate bonding strength, with a critical load requirement of >30N. All test data is entered into the blockchain system for quality traceability and process optimization.
There are various methods for surface oxidation treatment of titanium tubes, and the appropriate method can be selected based on specific needs. Whether using traditional anodizing or innovative laser oxidation, both aim to improve the performance of titanium tubes and extend their service life, thereby better meeting the needs of various industries.
