Pure Titanium Plate GR-4

Pure titanium plate GR-4
Name: Pure titanium plate level 4
Material: Commercial pure titanium G4
Specifications: Thickness range 0.5mm-50mm
width range 100mm-3000mm
length range 100mm-6000mm
Surface treatment: bright, sandblasting, polishing, etc.
Corrosion resistance: excellent
Lightweight: light weight, high strength
Price: Calculated based on the price of pure titanium on the day

Send Inquiry

Product Introduction

Pure titanium plate GR-4 is one of our company's titanium product plates . It has attracted much attention for its excellent performance and wide range of application fields , making it an ideal choice in many industries. It is carefully developed by our company's R&D team and undergoes many experiments and optimizations to ensure that it has excellent performance in all aspects. We are committed to providing high-quality products and excellent services to meet the diverse needs of our customers. If you have any questions or needs on quality, size, price , please feel free to contact us.

commercial pure titanium GR1, GR2, GR3 and GR4 , GR4 is mainly composed of titanium and aluminum and contains a higher aluminum content. Usually has higher strength and hardness and is suitable for some applications requiring high strength and hardness. Pure titanium grades such as GR1, GR2, and GR3 usually have better processability and toughness, but compared to GR4, their strength and hardness are lower.

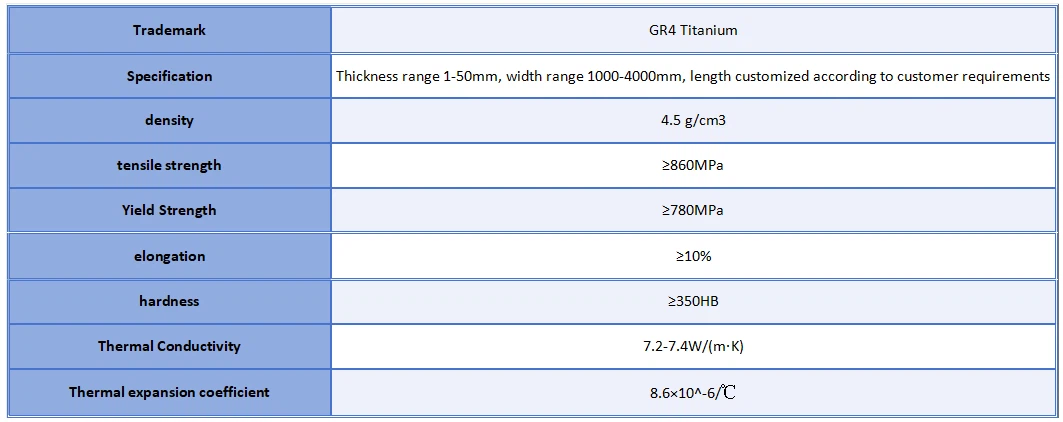

Pure titanium plate material parameters

Pure Titanium Plate Material Parameters

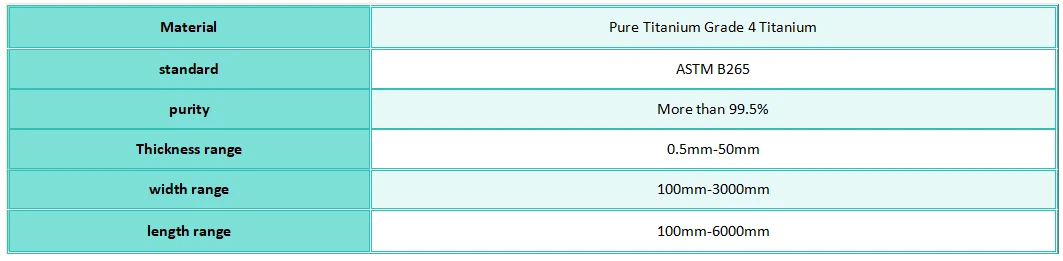

Pure titanium plate GR-4 size (can be specially customized)

Pure Titanium Plate GR-4 Size (Can Be Specially Customized)

Grade 4 titanium plate product features:

1.
Lightweight and strong: G4 titanium plates are lighter than other materials, but have excellent strength and corrosion resistance, making them suitable for use in important structures.

2.
Corrosion resistance: Titanium metal has excellent corrosion resistance and can be used for a long time in various harsh environments without damage.

3.
Good plasticity: Gr - 4 titanium plate can be formed through cold working and hot working to adapt to the needs of various complex structures.

4.
High temperature stability: Titanium metal has good high temperature stability and can maintain structural stability and performance in high temperature environments.

The most common applications of pure titanium plate GR-4 include:

1. Aerospace: used to manufacture aircraft parts, such as landing gear, engine parts and structural parts. Its high strength-to-weight ratio and corrosion resistance make it an ideal material for these applications.

2. Chemical processing: It is often used in chemical processing because of its excellent corrosion resistance. It is used in reactors, valves and piping in contact with acidic and chloride environments.

3. Medical implants: It is biocompatible and non-toxic, making it an ideal material for medical implants such as orthopedic implants and dental implants. Its excellent corrosion resistance and strength-to-weight ratio make it ideal for these applications.

4. Sporting goods: Grade 4 titanium plates are used to manufacture high-end sporting goods, such as golf clubs, tennis rackets, bicycles, etc. Its strength-to-weight ratio and fatigue resistance make it an excellent material for these applications.
