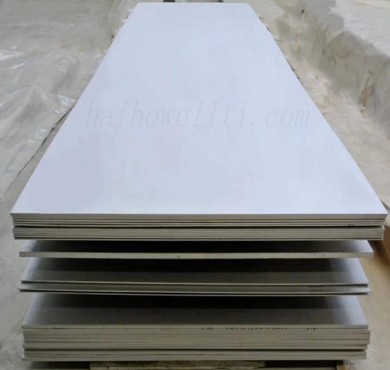

Titanium Alloy Plate Grade23
Name: titanium alloy plate grade23
Material: grade23 titanium alloy
Product: high quality
Place of Origin: Baoji. High-tech. Titanium Valley
Place of sale: international/domestic
Category: α+β titanium alloy plate
Specifications and dimensions: Different thicknesses can be customized from 1.0 to 50mm, up to 4000mm in length
Production process: casting, forging, heat treatment, rolling, milling, etc.
Product Introduction
product description:
Titanium alloy plate grade23 is a high-performance plate, high-stress, high-strength, high-corrosion-resistant titanium alloy material, which is alloyed with elements such as titanium, aluminum and vanadium. The plate is made of grade 5 and grade 6 titanium alloy. Our titanium plate complies with international executive standards ASTM, ISO, ASME and JIS , etc. The material is easy to mill, form and weld, durable and suitable for a variety of applications. Widely used in aerospace, biomedicine, petrochemical and other industries. Our production process is complex and precise, with complete specifications and sizes. We support the customized processing of plates, titanium tubes, rods, titanium wires, various titanium forgings, titanium strips, titanium fasteners, and thin and thick plates to meet the various needs of customers. .
The chemical composition is:
|
Titanium (Ti): |
88.0-90.0% |
|
Aluminum (Al) |
5.5-6.5% |
|
Vanadium (V) |
3.5-4.5% |
|
Iron (Fe) |
maximum 0.25% |
|
Oxygen (O) |
0.15% maximum |
|
Carbon (C) |
Max. 0.08% |
|
Nitrogen (N) |
maximum 0.03% |
|
Hydrogen (H) |
max. 0.015% |
Titanium alloy plate grade23 physical properties:
| density | 4.51 g/cm3 |
| Tensile Strength | 880 MPa (127600 psi) |
| Yield Strength | 828 MPa (120000 psi) |
| Elastic Modulus | 114 GPa (16500 ksi) |
| Elongation | 10% |
| melting point | 1660°C (3020°F) |

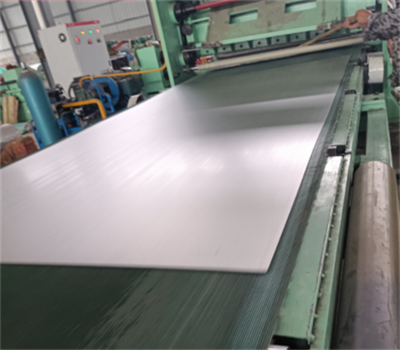

Production Process:
1
produced through multiple complex processes, including casting, forging, heat treatment, rolling, milling and other links.
2
First, titanium alloy powder is mixed with other elements and then subjected to high-temperature plasma arc melting.
3
Then through forging, heat treatment and other processes, its purity and strength are improved to form a titanium alloy billet.
4
Finally, through multiple precision processing processes, the titanium alloy billet is processed into G-R-23 titanium alloy plates.
Standard sizes:
Our specifications and sizes are very complete, including thickness and width for customers to choose from. In terms of thickness, different thicknesses can be customized from 1.0 to 50mm; in terms of width, plates of different lengths can also be customized, up to 4000mm in length. At the same time, this kind of titanium alloy plate can also be customized with various shapes, holes and other special processing according to customer needs to meet the diverse needs of customers.
Features:
|
High strength and durability |
Titanium alloy plate grade23 has higher strength than pure titanium and is ideal for high stress applications. |
|
Excellent corrosion resistance |
GRADE23 sheet exhibits excellent corrosion resistance in a variety of environments, including seawater, chemicals and acids |
|
low density |
With a density of only 4.51 g/cm3, this board is lightweight and ideal for applications where weight is an issue. |
|
biocompatibility |
non-toxic and biocompatible, making it suitable for use in medical implants. |
|
Easy to mill, form and weld for use in a variety of applications |
Easy to mill, form and weld for use in a variety of applications |
Grade 23 boards are widely used, including:
- Medical Implants: Used in the manufacture of medical implants, including bone plates, dental implants and spinal accessories.
- Aerospace: Lightweight properties make it ideal for aerospace applications such as aircraft frames and components.
- Marine: Excellent corrosion resistance makes it suitable for marine applications such as shipbuilding and offshore structures.
