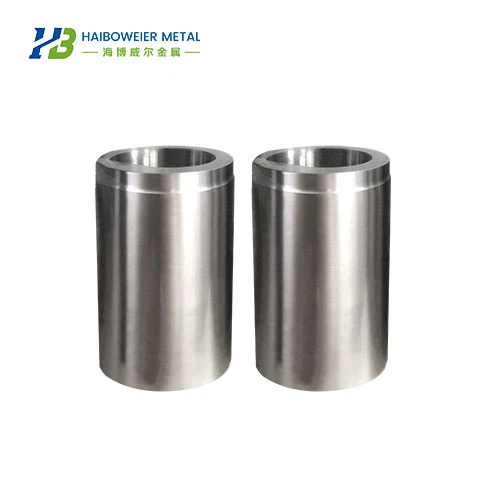

Titanium Extrusion Tube

Titanium extruded tube is a tube made of titanium alloy, which has high strength and light weight. High strength: Titanium extruded tube has high strength, which makes it able to withstand large pressure and load. Lightweight: The lightweight features of titanium extruded tubes enable them to reduce weight in applications, thereby improving efficiency in use. Corrosion resistance: Titanium extruded tubes have good corrosion resistance and can resist the influence of various corrosive environments. High temperature adaptability: Titanium extruded tubes have good high temperature adaptability and can maintain stable performance in high temperature environments.
The so-called extrusion is to apply an external force to the metal ingot placed in the container (extrusion cylinder) from one end to force it to flow out of a specific die hole to obtain a product of the required cross-sectional shape and size. A plastic molding method.

Product name: Titanium extruded tube

Material: titanium alloy
Grades: GR1, GR2, GR5 (Ti-6Al-4V), GR9 (Ti-3Al-2.5V), etc.
Executive standard: ASTM B337 ASTM B338 ASTM862
Titanium extruded tube specifications: extruded tube (M state) Ф (25-180) x (3.0-12.0) x L (other sizes are made according to customer needs)

First, the preparation of titanium extrusion ingots requires the use of vacuum arc melting ingots or electron beam cooling bed melting of large hollow ingots.

Next, we need to heat treat the blank. During the heating process, in order to protect the blank, we need to take some measures, such as casing heat treatment, coating heat treatment, salt bath heat treatment, etc.

Then, the titanium ingot is placed into the extrusion cylinder through the extrusion molding process, and external force is applied to make it extrude from the specific die hole to produce the desired shape and product.

Finally, we also need to perform finished product processing, such as surface treatment. This includes steps such as polishing or pickling to m

1. Its high strength and light weight have become popular in many industries, especially in situations where light weight and high strength are required.
2. Its specific strength is also excellent. In environments where high specific strength is required, its advantages exceed its weight performance.
3. High temperature resistance and low temperature resistance are also outstanding.

4. Titanium extrusion tube is also non-magnetic and non-toxic, making it suitable for use in food and daily life.

1. Used to make pipelines for transporting oil and natural gas.
2. Can be used to manufacture parts of chemical equipment, such as valves, pipes, reactors, etc.
3. Used in pipelines in marine engineering, ship pipelines, seawater desalination equipment, etc.
4. Manufacturing aerospace equipment parts, such as aircraft engine turbine blades and pipes.
5. Used in manufacturing automobile engine parts.
6. Use in other industries: electronics, medical, sports and other fields, such as the manufacturing of electronic equipment, etc.
