Grade 5 Ti-6Al-4V Titanium Wire
Ti-6Al-4V titanium alloy is an advanced material with good mechanical properties, high strength, corrosion resistance, fatigue resistance, high temperature stability and other advantages. It is currently used in aerospace, shipbuilding, medical, automobile, sports equipment One of the important materials widely used in fields such as
Product Introduction
main ingredient
Gr5 titanium alloy is mainly used in the heat treatment state, and its performance can also be enhanced through solid solution aging treatment, but the quenching hardened section generally does not exceed 25mm.
Ti 6-4 titanium alloy has excellent processability and high plasticity, making it suitable for different tension forming processes. The material can also be welded and machined in a variety of ways.
Gr5 Ti-6Al-4V titanium wire is an aviation grade titanium alloy material. Because Ti 6-4 titanium wire has non-cold deformation characteristics, it can be widely used without cold deformation. Ti 6Al4V titanium alloy has high consumption resistance, low density, high strength, amazing strength and excellent welding performance.
Compared to other industrially available pure titanium, Ti6Al-4V has higher strength and maintains similar thermal and non-bending properties (no thermal conductivity). Titanium gr5 Ti-6Al-4V wire provides an ideal combination of high strength and excellent durability.
Ti 6Al-4V titanium wire is one of the most commonly used titanium alloys. Ti 6Al-4V is considered a "foundational force" in the titanium market, as it is undoubtedly one of the most commonly used titanium and technologies, accounting for more than half of total titanium usage.
Implementation standards: ASTM B863, ASME SB863
Shape: titanium coil wire, titanium spool, titanium straight line
Performance: 1. Excellent comprehensive performance 2. Good high temperature performance
main ingredient
|
Ti |
Ai |
Fe |
O |
V |
P |
|
90 |
6 |
0.25 |
0.2 |
4 |
0.02 |
Gr5 Ti 6-4Titanium Wires Mechanical Properties (ASTM B863)
|
Tensile strength, Mpa (min) |
Yield strength, MPa (min) |
Elongation, % (min) |
Reduction of Area, % (min) |
|
345 |
275-450 |
20 |
-- |
High temperature mechanical properties
|
Trademark |
Test temperature (℃) | High temperature mechanical properties, not less than | |
|
GR5 |
400 |
Tensile strength σMPa | Durable strength 100HMpa |
|
630 |
580 |
||
Material Description
As an α+β dual-phase titanium alloy, Gr.5 titanium alloy, (Ti-6Al-4V) has excellent comprehensive properties and can work at 400°C for a long time while having excellent strength. Due to its good high temperature performance, it can be used to manufacture load-bearing components such as aircraft engine compressor disks, fans, blades and frame beams.

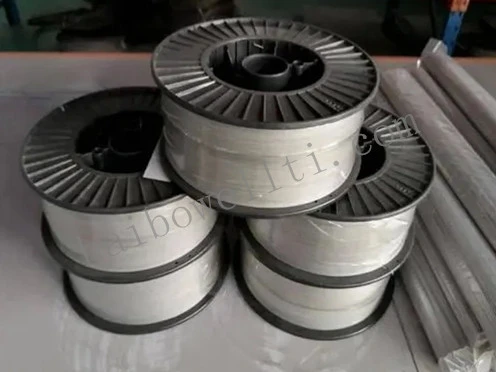

Product packaging ：
Use standard plastic reels, wooden boxes or according to customer needs.

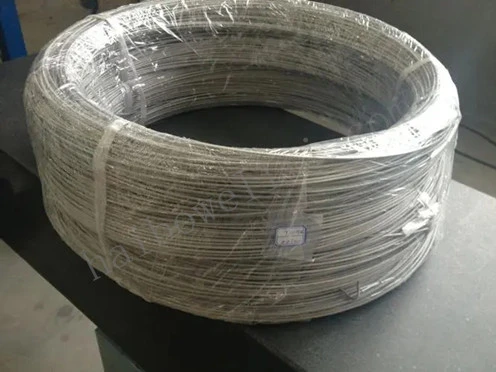

Product display
If you need more titanium wire, please contact us. haibowelljs@163.com
